Made of 2 solid copper conductor cores 5mm² each with an additional Earth core called a CPC Circuit Protection Core, the cable construction is shown i

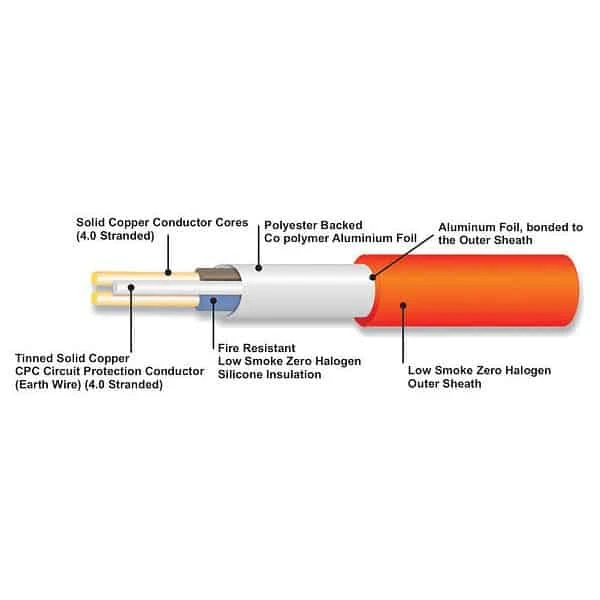

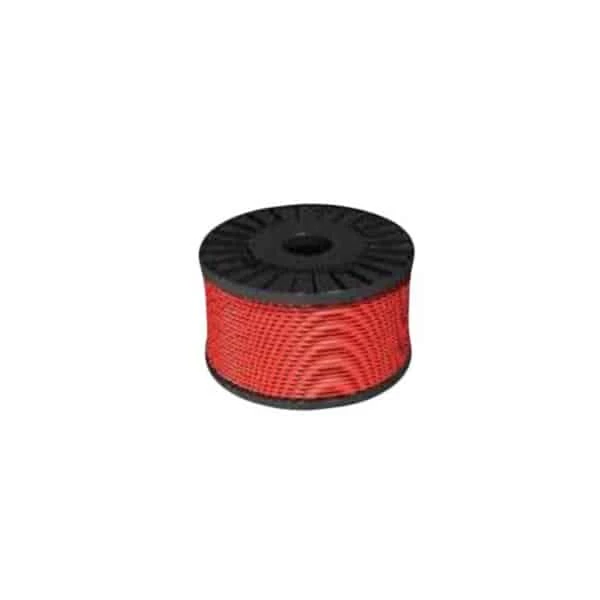

The 100 mtrs Reel 'HP HIGH PERFORMANCE' fire resistant cable 2 core, 2.5mm sq solid core, Red, meets BS5839 Pt1 2002 26.2d – 26.2d. LPCB approved is part of the Fire Resistant Cables range from Context Plus, supplied and supported by SPS. Made of 2 solid copper conductor cores 5mm² each with an additional Earth core called a CPC Circuit Protection Core, the cable construction is shown in the photo below All Context Plus fire resistant cables are approved & certified by LPCB to meet current British and European fire test standards plus the additional life safety requirements provided by Low Smoke & Zero Halogen emission levels. Twisted during manufacture to provide the highest level of data protection, ideal for long cable runs and analogue addressable fire systems Easy to Install and Superb Working Flexibility Up to 12 Twists per metre for Data Protection Red and White Outer Sheaths Available Supplied in 100m length on a solid plastic Reel. Available also in 500m length. Conductors made of ETP1 High grade copper 100m and 500m Reels are available.
