50 mtrs Reel FirePlus-LHD Digital Linear Heat Detection cable 185°C Nylon outer sheath- UL Listed. Available in 50m, 100m, 200m, 500m and 1000m Reels
• Designed to monitor and trigger a response when a specific temperature is reached. If the temperature surrounding the cable reaches the activation t
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The 50 mtrs Reel FirePlus-LHD Digital Linear Heat Detection cable 185°C Nylon outer sheath- UL Listed. Available in 50m, 100m, 200m, 500m and 1000m Reels is part of the Digital Linear Heat Detection Cable range from Context Plus, supplied and supported by SPS. • Designed to monitor and trigger a response when a specific temperature is reached. If the temperature surrounding the cable reaches the activation temperature, the two cores quickly come into contact and trigger an alarm. • Every inch of the Digital Linear Heat Detection cable act as the sensor providing extensive and comprehensive detection over large areas. • It is possible to connect 3,000 metres to any typical conventional or addressable fire alarm control panel or building management system providing greater protection than can be achieved using multiple discrete sensors. • Respond well to an overheat situation in noisy, dusty or hazardous environments where other types of detectors may trigger false alarms. • 185°C Nylon Outer Sheath. • UL 521 Approved, UL listed. • Up to 10,000ft (3000m) per zone. • Detection along the entire length of sensor cable. • Optional Stainless Steel over-braiding for increased mechanical protection.
Specifications & features
- Designed to monitor and trigger a response when a specific temperature is reached.

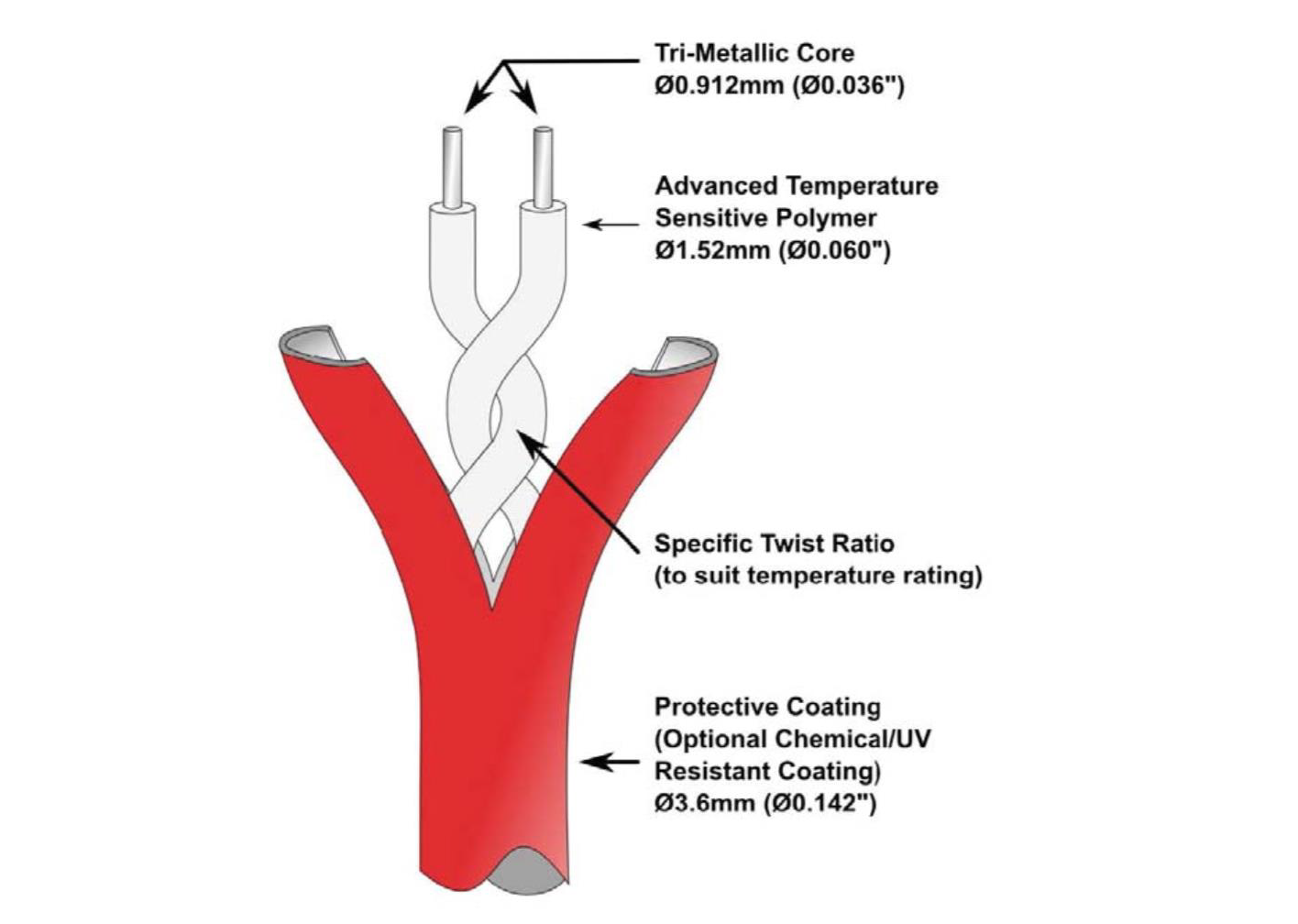

- If the temperature surrounding the cable reaches the activation temperature, the two cores quickly come into contact and trigger an alarm.
- Every inch of the Digital Linear Heat Detection cable act as the sensor providing extensive and comprehensive detection over large areas.
- It is possible to connect 3,000 metres to any typical conventional or addressable fire alarm control panel or building management system providing greater protection than can be achieved using multiple discrete sensors.
- Respond well to an overheat situation in noisy, dusty or hazardous environments where other types of detectors may trigger false alarms.
- 185°C Nylon Outer Sheath.
- UL 521 Approved, UL listed.
- Up to 10,000ft (3000m) per zone.
- Detection along the entire length of sensor cable.
- Optional Stainless Steel over-braiding for increased mechanical protection.
