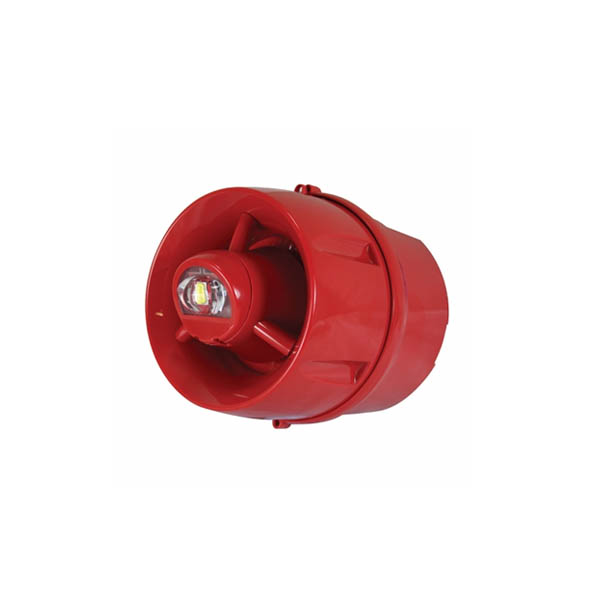

Addressable Combined loop powered Sounder/Beacon with deep base IP55
• The Context Plus Addressable Combined loop powered Sounder/Beacon with deep base CON433A/CX/DR/65 is the IP55 version of our popular Sounder/Beacon
Addressable loop powered red Compact Combined Sounder/Beacon – INTERTEK Approved
• The Context Plus red Addressable loop powered Compact combined sounder/beacon is third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The Addressable loop powered red Compact Combined Sounder/Beacon – INTERTEK Approved is part of the Analogue Addressable Audio Visual & Voice Alarms range from Context Plus, supplied and supported by SPS. • The Context Plus red Addressable loop powered Compact combined sounder/beacon is third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by Intertek. • Provides 'W-3-3.1' light distribution when wall mounted (min 0.4 lux over a 3 x 8m cylindrical area). • Can also provide 'C-3-8' light distribution when ceiling mounted (min. 0.4 lux over a 3 x 3.1m cuboid area). • Impressive 91dB(A) sound output @ 1m. • Onboard short-circuit loop isolator. • 550µA quiescent current. • 14mA alarm current @24V DC (VAD lit, sounder on max). • Group addressing facility allows multiple devices to be operated simultaneously. • 7 selectable volume levels and up to 15 selectable tone pairs. • IP21C rated.
Specifications & features
- The Context Plus red Addressable loop powered Compact combined sounder/beacon is third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by Intertek.
- Provides 'W-3-3.1' light distribution when wall mounted (min 0.4 lux over a 3 x 8m cylindrical area).
- Can also provide 'C-3-8' light distribution when ceiling mounted (min.
- 0.4 lux over a 3 x 3.1m cuboid area).
- Impressive 91dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 14mA alarm current @24V DC (VAD lit, sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels and up to 15 selectable tone pairs.
- IP21C rated.
