Addressable loop powered red Vantage Compact Beacon c/w shallow base- INTERTEK Approved
The Context Plus red Vantage loop powered Compact beacon c/w shallow base is third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek. P
S.P.S — Product

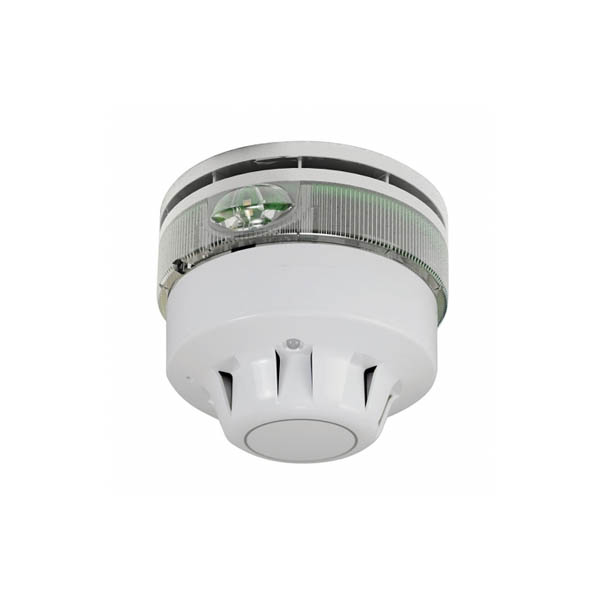

Addressable loop powered Sounder Beacon Base with isolator – Suitable for use with DIL Switch & Xpert Card detectors
The Context Plus Addressable loop powered Sounder Beacon Base with isolator is compliant with the European Standards EN54-3 (Sounders), EN54-23 (VADs)
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The Addressable loop powered Sounder Beacon Base with isolator – Suitable for use with DIL Switch & Xpert Card detectors is part of the Analogue Addressable Audio Visual & Voice Alarms range from Context Plus, supplied and supported by SPS. The Context Plus Addressable loop powered Sounder Beacon Base with isolator is compliant with the European Standards EN54-3 (Sounders), EN54-23 (VADs) and 17. Provides 'C-3-8' light distribution (min 0.4 lux over a 3 x 8m cylindrical area). Supplied with a BF431QCP quick connect plate and detector spur wires. Impressive 96dB(A) sound output @ 1m. Onboard short-circuit loop isolator. 550µA quiescent current. 14mA alarm current @24V DC (VAD lit, sounder on max). Group addressing facility allows multiple devices to be operated simultaneously. 7 selectable volume levels and up to 15 selectable tone pairs. Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use. IP21C rated.
Specifications & features
- The Context Plus Addressable loop powered Sounder Beacon Base with isolator is compliant with the European Standards EN54-3 (Sounders), EN54-23 (VADs) and 17.
- Provides 'C-3-8' light distribution (min 0.4 lux over a 3 x 8m cylindrical area).
- Supplied with a BF431QCP quick connect plate and detector spur wires.
- Impressive 96dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 14mA alarm current @24V DC (VAD lit, sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels and up to 15 selectable tone pairs.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
