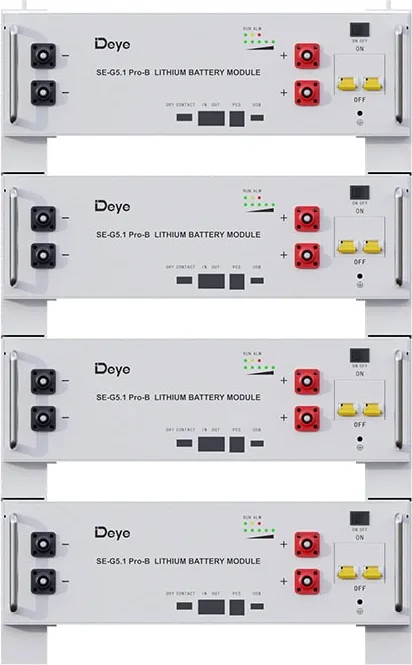

SE-G5.1 Pro-B
Deye SE-G5.1 Pro-B - 5.12kWh 51.2V 100Ah LiFePO4 battery, rack or wall mounted, expandable to 64 units in parallel.
BOS-G
Deye BOS-G - high-voltage LiFePO4 rack battery built from 5.12kWh 51.2V 100Ah modules, 3-12 in series up to 61.44kWh.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The BOS-G is Deye's high-voltage rack battery for small commercial storage (supplied by SPS). Between three and twelve 5.12kWh modules connect in series, giving up to 61.44kWh of system energy and 55.29kWh usable at DC power up to 61.44kW. It is the pack that partners the SG01HP3 three-phase inverters on Lebanese commercial sites.
Specifications
- Battery Chemistry: LiFePO4
- Module Energy: 5.12 kWh
- Module Capacity: 100 Ah
- Module Nominal Voltage: 51.2 V
- Configuration: 3 to 12 modules in series
- Max System Energy: 61.44 kWh (55.29 kWh usable)
- Max Rated DC Power: 61.44 kW
- Cycle Life: 6000+ cycles at 70% EOL
- Operating Temperature: Charge 0 to 55 C, discharge -20 to 55 C
- Protection Rating: IP20
- Communication: CAN 2.0 / RS485
