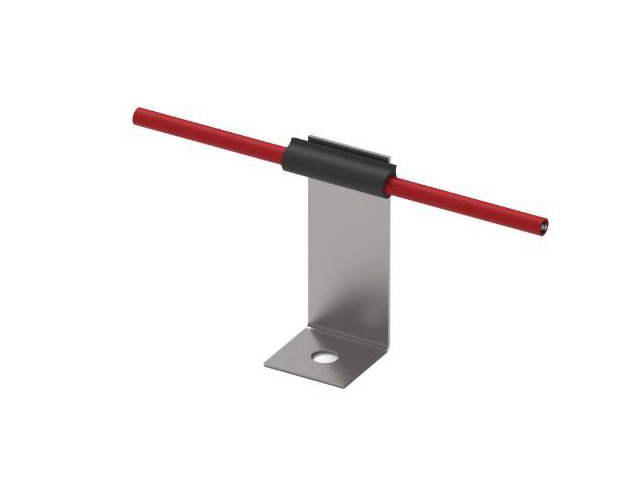

Standard L-Clip (50mm) Stainless Steel inc Silicone pad- PACK OF 100
L-Clip (50mm) made of Stainless Steel used for the installation of the Linear Heat Detection Cables. Sold in pack of 100. Included the Silicone Pad wi
S.P.S — Product

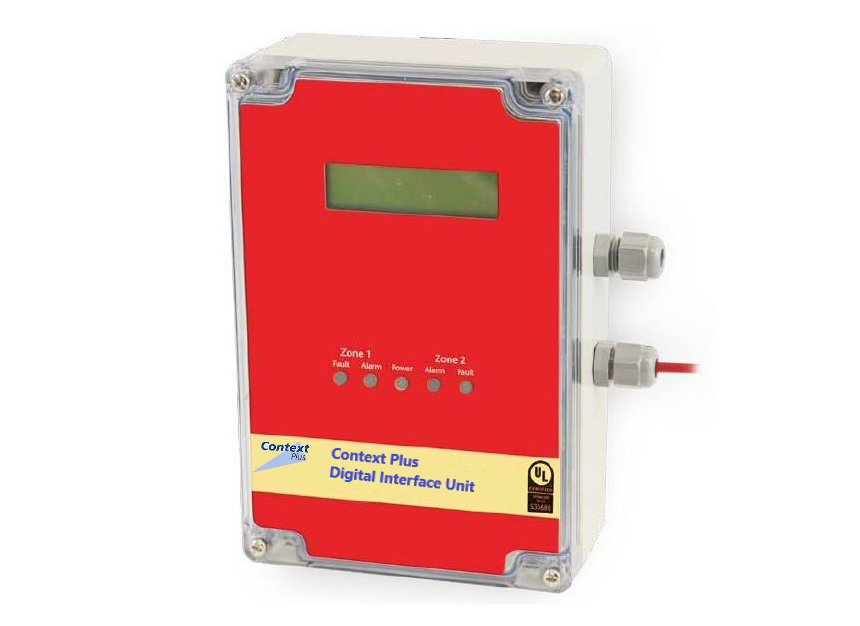

FirePlus-LHD Digital Interface Unit
• Allows the accurate and immediate location of a fire or overheat along the length of our Context Plus Linear Heat Detection cable. • Pinpoint the ex
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The FirePlus-LHD Digital Interface Unit is part of the Digital Linear Heat Detection Cable range from Context Plus, supplied and supported by SPS. • Allows the accurate and immediate location of a fire or overheat along the length of our Context Plus Linear Heat Detection cable. • Pinpoint the exact location of an incident and respond immediately. • Simultaneously monitor up to two zones for fault or fire. The two zones can operate independently from each other or in Interlock/Coincidence detection mode requiring both LHD cables to trigger before transmitting an alarm. • Volt-free outputs for fault and fire alarm, corresponding to each zone. • Connects to our Context Plus conventional and addressable fire alarm control panels. Can also be connected to an industrial process control system using the two-wire RS485 Modbus RTU output. • Built-in sounder. • UL864 10th Edition Approved, UL listed.
Specifications & features
- Allows the accurate and immediate location of a fire or overheat along the length of our Context Plus Linear Heat Detection cable.
- Pinpoint the exact location of an incident and respond immediately.
- Simultaneously monitor up to two zones for fault or fire.
- The two zones can operate independently from each other or in Interlock/Coincidence detection mode requiring both LHD cables to trigger before transmitting an alarm.
- Volt-free outputs for fault and fire alarm, corresponding to each zone.
- Connects to our Context Plus conventional and addressable fire alarm control panels.
- Can also be connected to an industrial process control system using the two-wire RS485 Modbus RTU output.
- Built-in sounder.
- UL864 10th Edition Approved, UL listed.
