Pressure Supervisory Switch (N/C) – UL Listed
The Pressure Supervisory Switch part CP50138-1 is used to monitor the pressure within the Clean Agent cylinder. If a cylinder leak occurs, and its pre
S.P.S — Product
Flex Hoses ( 1″ ,1-1/2″ , 2-1/2″ ,4″ )- UL Listed
Flex hoses are used to connect the clean agent cylinder to the discharge piping or to the manifold in multiple cylinders arrangement.
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details

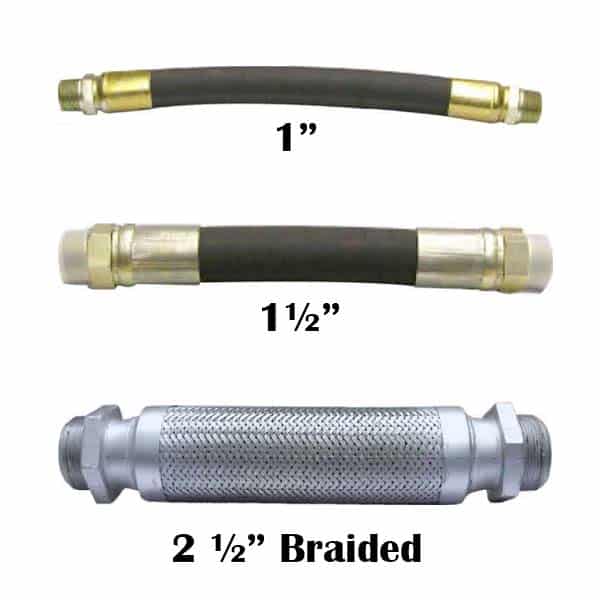

The Flex Hoses ( 1″ ,1-1/2″ , 2-1/2″ ,4″ )- UL Listed is part of the Clean Agent Fire Extinguishing Accessories range from Context Plus, supplied and supported by SPS. Flex hoses are used to connect the clean agent cylinder to the discharge piping or to the manifold in multiple cylinders arrangement.
Specifications & features
- Flex hoses are used to connect the clean agent cylinder to the discharge piping or to the manifold in multiple cylinders arrangement.
- Flex hoses are constructed of high pressure hydraulic rubber in the 1″ and 1-1/2″ sizes and stainless steel corrugated inner core with stainless steel braid in the 2-1/2″ size.
- All sizes are fitted with male NPT thread on both ends.
- The 4” flex hose is manufactured from a stainless steel corrugated inner core with stainless steel braided.
- The 4” flex hose has 4″ Victaulic fittings on both ends.
- Part Number Size A Material CP 60255 1” 18″ Rubber CP 60256 1-1/2″ 18″ Rubber CP 60257 2-1/2″ 18″ Rubber CP91230 4” 30 -1/2″ Stainless Steel Braided
