IVBM 8048P1G1

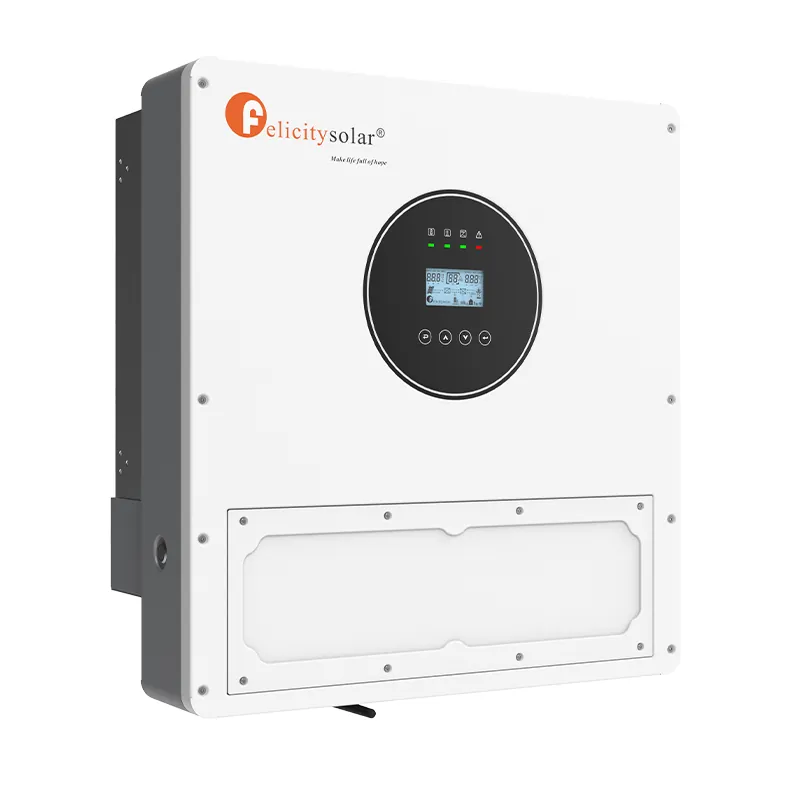

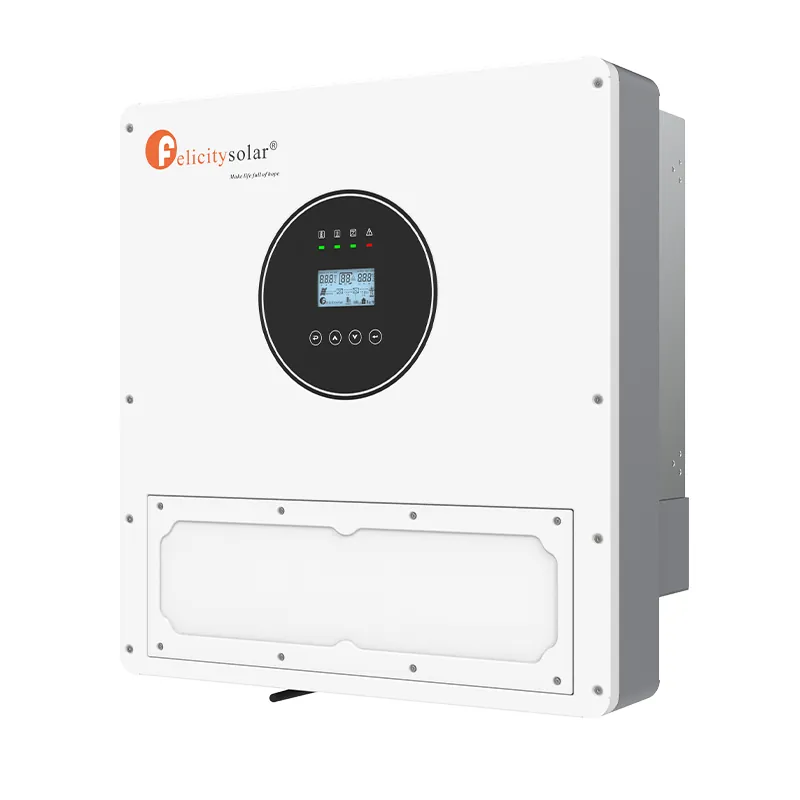

Felicity Solar IVBM 8048P1G1 — 8kW / 48V DC off-grid low-frequency solar inverter/charger with dual-string MPPT, built-in Wi-Fi and an IP65 enclosure.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details

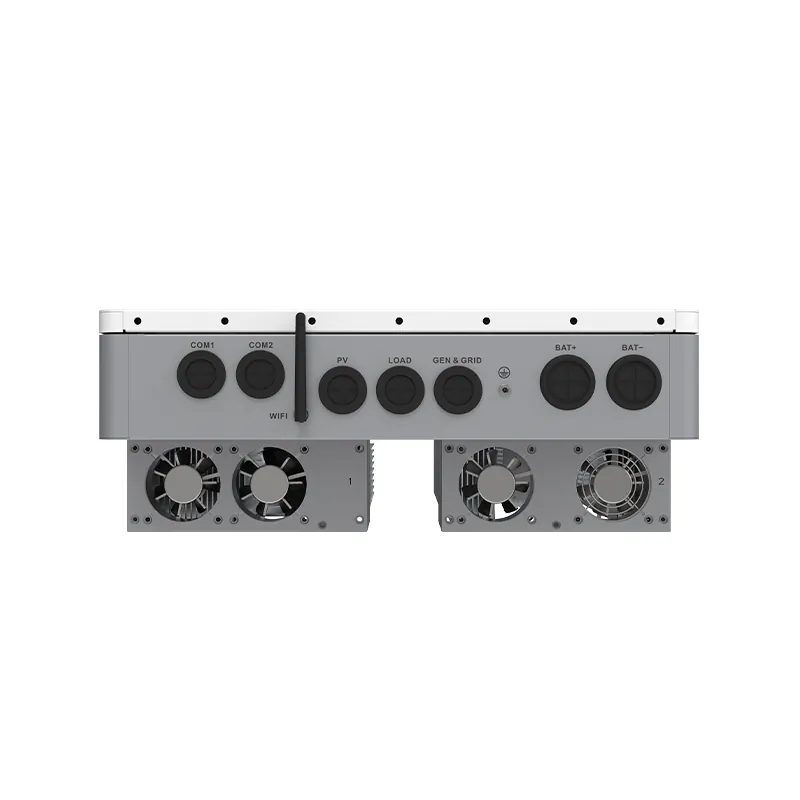

Built for off-grid and hybrid systems, the IVBM 8048P1G1 from Felicity Solar combines inverter, MPPT solar charger and battery charger in one low-frequency unit (supplied by SPS). Two PV strings feed the built-in MPPT controller, an independent generator port accepts utility or generator power, and up to 6 units run in parallel once batteries are connected. Built-in Wi-Fi gives mobile monitoring through the app, and the IP65 enclosure suits demanding installations.
Specifications
- Rated Output Power: 8kW / 8000VA
- Nominal DC Input Voltage: 48V
- Nominal Output Voltage: 230Vac±5%
- Input Voltage Range: 90-280Vac
- Nominal Input Frequency: 50Hz/ 60Hz (Auto detection)
- Max. PV Input Power: 10,000W (5,000W for Single PV)
- PV Voltage Working Range: 90V-450V
- Max. Solar Charging Current: 150A
- Peak Efficiency: 94.5%
- Operating Temperature: 0℃~50℃
