Manifold Metal Flexible Hoses( 1/4″ X 12″ ,1/4″ X 20″ ,1/4″ X 36″ ,1/4″ X 12″ )- UL Listed
Flex hoses are used to connect the clean agent cylinder to the manifold in multiple cylinders arrangement. Flex hoses are constructed of high pressure
Manifold Flare Elbow, T-joint, Nipple & Nipple Cap
Various options of fittings of 7/16-20 UNF Flare Connection and 1/8” NPT Threads are available for use with the Flex hoses that are used to connect th
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The Manifold Flare Elbow, T-joint, Nipple & Nipple Cap is part of the Clean Agent Fire Extinguishing System Cylinders & Accessories range from Context Plus, supplied and supported by SPS. Various options of fittings of 7/16-20 UNF Flare Connection and 1/8” NPT Threads are available for use with the Flex hoses that are used to connect the clean agent cylinder to the manifold in multiple cylinders arrangement.
Specifications & features
- Various options of fittings of 7/16-20 UNF Flare Connection and 1/8” NPT Threads are available for use with the Flex hoses that are used to connect the clean agent cylinder to the manifold in multiple cylinders arrangement.

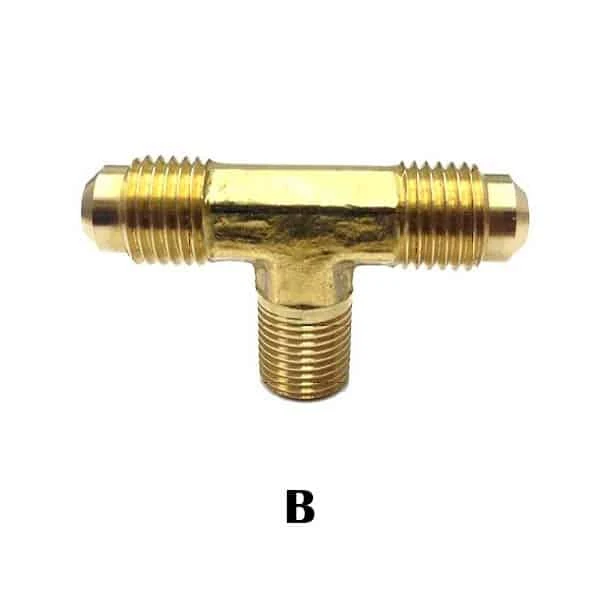

- Part Number Description A CP 50194-6 1/8″ NPT x 7/16-20-UNF Flare Elbow B CP 50194-1A 1/8″ NPT & 7/16-20-UNF Flare T-Joint C CP 50194 1/8″ NPT to 7/16-20-UNF Flare Nipple D CP 70191-A 7/16-20-UNF Nipple cap
