Portable Fire Telephone Handset heavy duty (Replaces EVC301/HS)

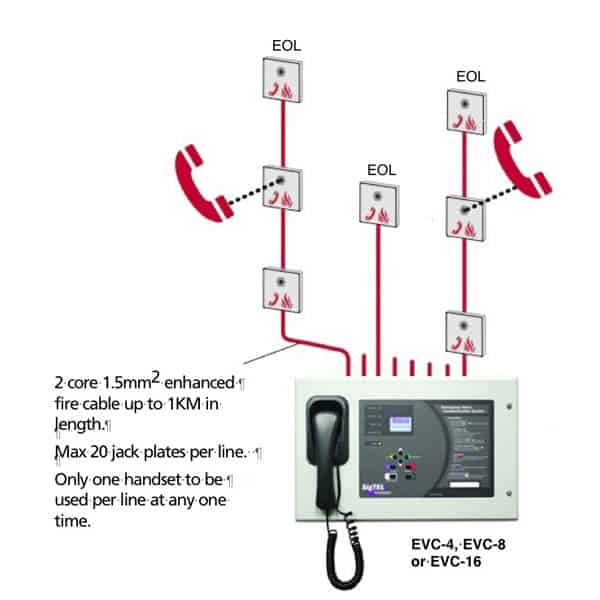

The Portable Fire Telephone Handset heavy duty (Replaces EVC301/HS) is part of the Fire Telephone & Disabled Refuge Systems range from Context Plus, supplied and supported by SPS. The EVC301/PH A portable fire telephone handset designed for use in conjunction with a series of EVC301/JP Jack Plates on the SigTEL emergency voice communication systems. Includes a flexible 1.5m coiled lead c/w a 1/4” jack plug. When plugged into an EVC301/JP Jack Plate the handset EVC301/PH will call the SigTEL master controller from where a two-way speech channel can be opened and instructions communicated. Multiple jack plates can be connected to a single SigTEL Master Controller line in stairwells, etc. Designed for use in regions where roaming handsets are required. Facilitates reliable two-way communication in an emergency between a permanently manned control room and key points of a site.

Specifications & features

• Approvals/certifications: Designed for use in regions where roaming handsets are required Supply/operating voltage: 11V DC derived from a compatible SigTEL Master Controller (drops to 6 V DC when in use).
• Quiescent current: 1mA Activation current: 25mA (current draw when handset is in use).
• Indicators: When the operator in the control room calls the outstation, a pulsed ringing tone sounds at the outstation.
• Connections: 6.35mm jack plug.
• Product dimensions (mm): 180 H x 55 W x 40 D mm.
• IP Rating: IP20.
• Weight: 120g.
• Operating conditions/temperature: -5ºC to +40ºC.
• Max relative humidity: 95%.
