SE-G5.1

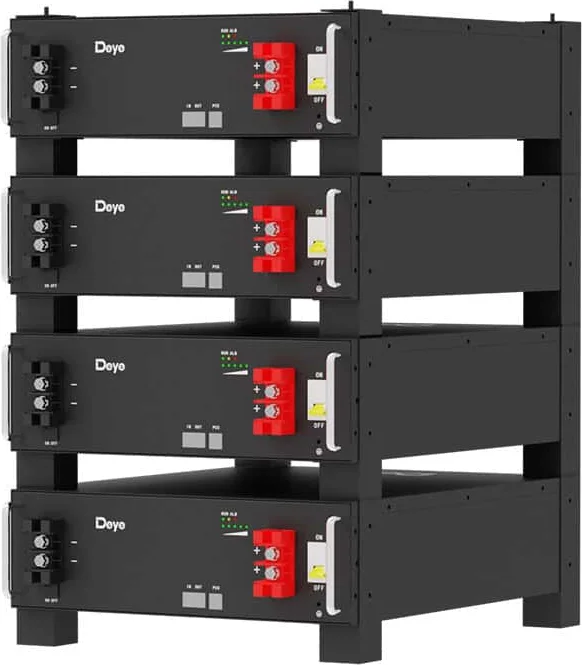

Deye SE-G5.1 - 5.12kWh 51.2V 100Ah LiFePO4 battery in a 3U rack, wall or stack mount, expandable to 64 units.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The SE-G5.1 is the standard 5.12kWh lithium module in Deye's low-voltage residential range (supplied by SPS). It holds 100Ah at 51.2V, supports a 50A continuous discharge with 100A peaks, and auto-networks with its neighbours so a bank configures itself. Non-toxic LiFePO4 chemistry and a 6000-cycle rating suit daily deep cycling.
Specifications
- Battery Chemistry: LiFePO4
- Nominal Energy: 5.12 kWh
- Nominal Capacity: 100 Ah
- Nominal Voltage: 51.2 V
- Operating Voltage: 44.8 - 57.6 V
- Continuous Discharge Current: 50 A (100 A peak)
- Scalability: Up to 64 units in parallel
- Cycle Life: 6000+ cycles
- Operating Temperature: -20 to 55 C
- Mounting: 3U rack, wall or stack
- Dimensions (W x H x D): 440 x 540 x 133 mm
- Weight: 44 kg
