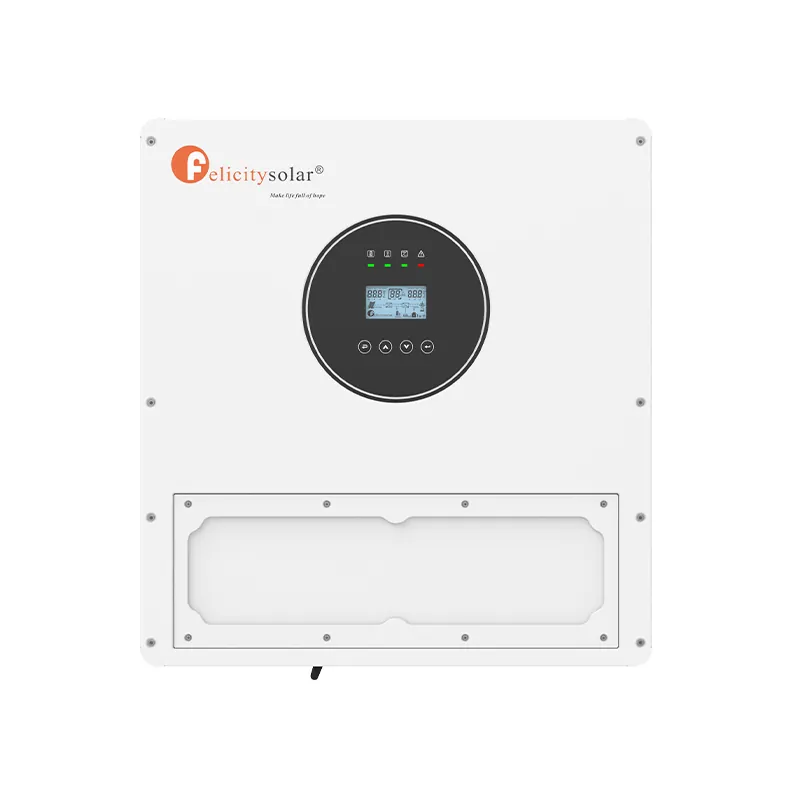

IVBM 8048P1G1
Felicity Solar IVBM 8048P1G1 — 8kW / 48V DC off-grid low-frequency solar inverter/charger with dual-string MPPT, built-in Wi-Fi and an IP65 enclosure.

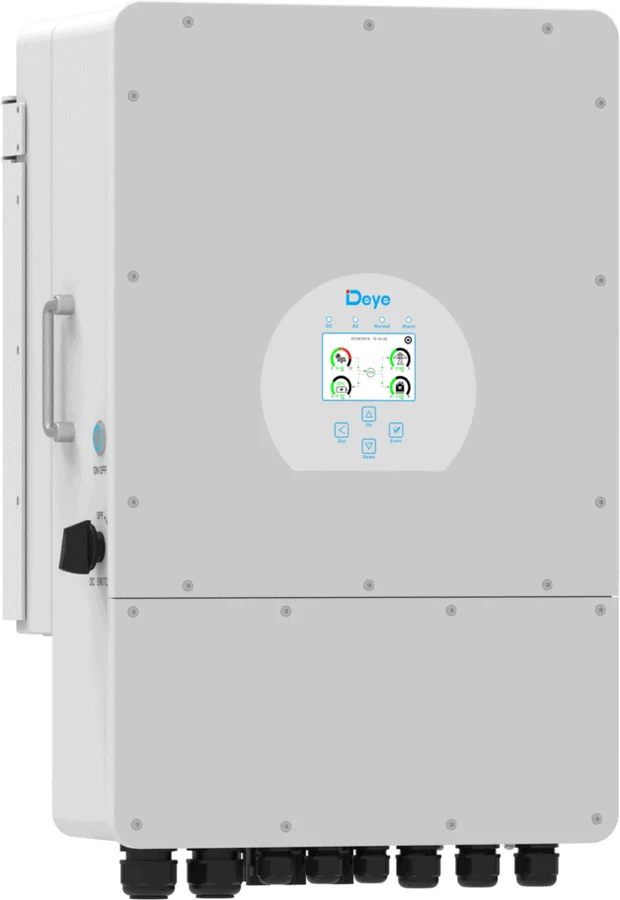

SUN-12K-SG04LP3-EU
Deye SUN-12K-SG04LP3-EU - 12kW three-phase 48V hybrid inverter with 240A battery charging and 24kW PV input.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The SUN-12K-SG04LP3-EU is the three-phase inverter most often specified for Lebanese commercial sites that keep a 48V lithium bank (supplied by SPS). It carries 24kW of PV, charges and discharges at 240A, and delivers a fully unbalanced three-phase output so single-phase loads can sit anywhere on the board.
Specifications
- Rated Output Power: 12000 W
- Max Apparent Power: 13200 VA
- Phase: Three phase, 220/380 V - 230/400 V
- Battery Voltage Range: 40-60 V
- Max Charging / Discharging Current: 240 A
- Max PV Access Power: 24000 W
- Max PV Input Power: 18000 W
- Max PV Input Voltage: 800 V
- MPPT Voltage Range: 200-650 V (2 MPPT)
- Protection Rating: IP65
- Dimensions (W x H x D): 422 x 658 x 254 mm
- Weight: 38 kg
