IVGM 5KLP1G1
Felicity Solar IVGM 5KLP1G1 — 5kVA / 40V~60V DC multifunction solar inverter/charger with built-in MPPT.
SUN-6K-OG02LP1-EU-AM1
Deye SUN-6K-OG02LP1-EU-AM1 - 6kW single-phase 48V off-grid inverter with 135A battery charging and 12kW PV input.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details

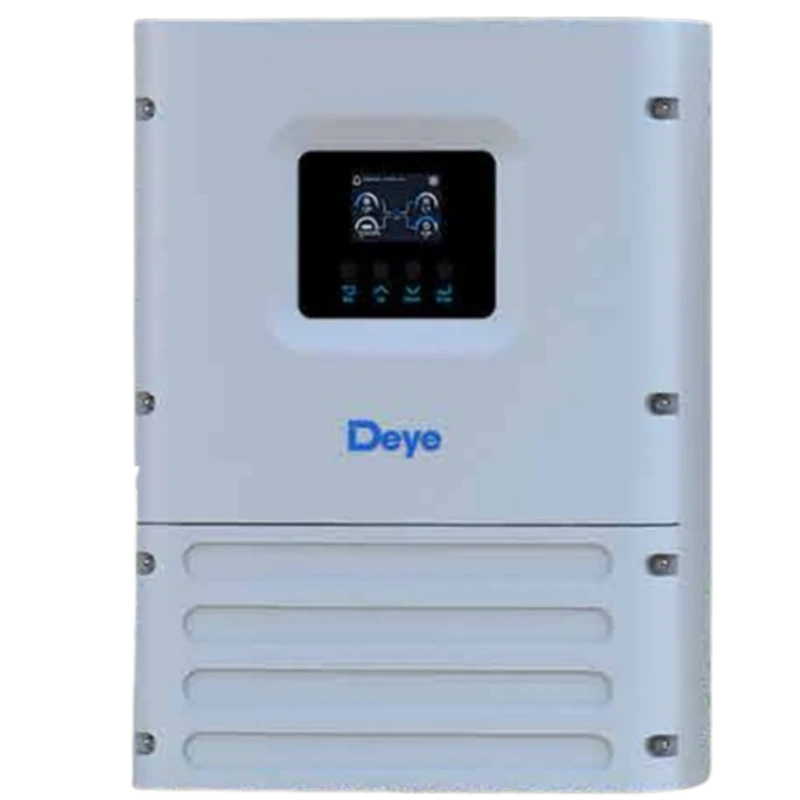

The SUN-6K-OG02LP1-EU-AM1 is Deye's new-generation 6kW single-phase off-grid inverter (supplied by SPS), built for standalone systems that run entirely on solar and battery, with an AC input reserved for a backup generator or grid charging rather than export. It charges a 48V lead-acid or lithium battery bank at up to 135A, accepts up to 12kW of PV across two strings on a single MPPT tracker, and switches loads in 4ms. Peak output reaches 200% of rated power for reliable pump and motor startup.
Specifications
- Rated Output Power: 6000 W
- Max Apparent Power: 6000 VA
- Phase: Single phase, 230 Vac
- Battery Type / Voltage Range: Lead-acid or Lithium-ion, 40-60 V
- Max Charging / Discharging Current: 135 A
- Max PV Access Power: 12000 W
- Max PV Input Power: 9600 W
- Max PV Input Voltage: 450 V
- MPPT Voltage Range: 150-425 V (1 MPPT, 2 strings)
- Max Efficiency: 97.6%
- Protection Rating: IP65
- Dimensions (W x H x D): 306 x 427.5 x 175.8 mm
- Weight: 9.3 kg
- Warranty: Standard 5 years, extendable
