Wall Mounted Jack Plate

REF. SPS-0431 Official equipment

• The EVC301/JP is a single gang jack plate designed for use in conjunction with an EVC301/PH portable fire telephone handset on the SigTEL fire telep

Ask on WhatsApp
  • Genuine, fully-supported equipment
  • Technical guidance from our engineers
  • Add several products, request one quote
Overview

Product Details

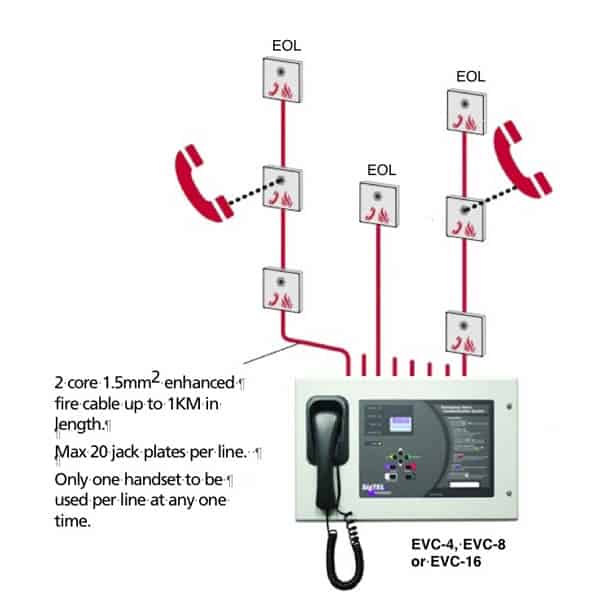

The Wall Mounted Jack Plate is part of the Fire Telephone & Disabled Refuge Systems range from Context Plus, supplied and supported by SPS. • The EVC301/JP is a single gang jack plate designed for use in conjunction with an EVC301/PH portable fire telephone handset on the SigTEL fire telephone system and on the emergency voice communication system of Context Plus. • Can be mounted on 25mm UK flush or surface single gang back box. • When the handset EVC301/PH is plugged into the Jack Plate EVC301/JP it will call the SigTEL master controller from where a two-way speech channel can be opened and instructions communicated. • Multiple jack plates can be connected to a single SigTEL Master Controller line in stairwells, etc. • Facilitates reliable two-way communication in an emergency between a permanently manned control room and key points of a site.

Specifications & features

  • Approvals/certifications: Designed for use in regions where roaming handsets are required Supply/operating voltage: 11V DC derived from a compatible SigTEL Master Controller (drops to 6 V DC when in use).
  • Quiescent current: 1mA Activation current: 25mA (current draw when handset is in use).
  • Indicators: When the operator in the control room calls the outstation, a pulsed ringing tone sounds at the outstation.
  • Connections: 6.35mm jack socket.
  • Product dimensions (mm): 85 W x 85 H x 30 D mm (Can be mounted on a standard UK 25mm single gang flush or surface back box).
  • Construction & finish: Plastic.
  • IP Rating: IP20.
  • Weight: 58g.
  • Operating conditions/temperature: -5ºC to +40ºC.
  • Max relative humidity: 95%.
