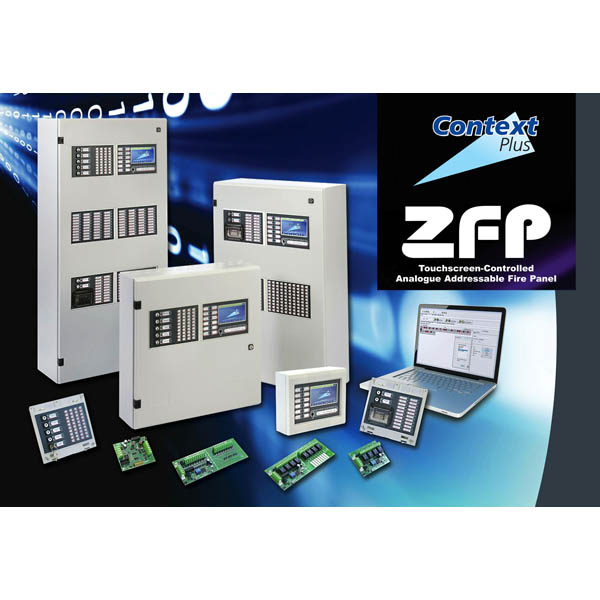

ZFP 6 loop Panel with 40 zone LEDS (Z47), PSU rated at 5 Amps
Context Plus ZFP panel model Z065040NM/X/CON is a feature-rich touchscreen-controlled intelligent addressable fire panel with 6 addressable loops and
S.P.S — Product
ZFP HiNET Repeater panel Multipath Network (includes network interface PCB) Surface mount- Requires a Separate PSU
The Context Plus ZREP1S is an intelligent addressable ZFP network device that can be used as a traditional but compact repeater panel with added funct
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details

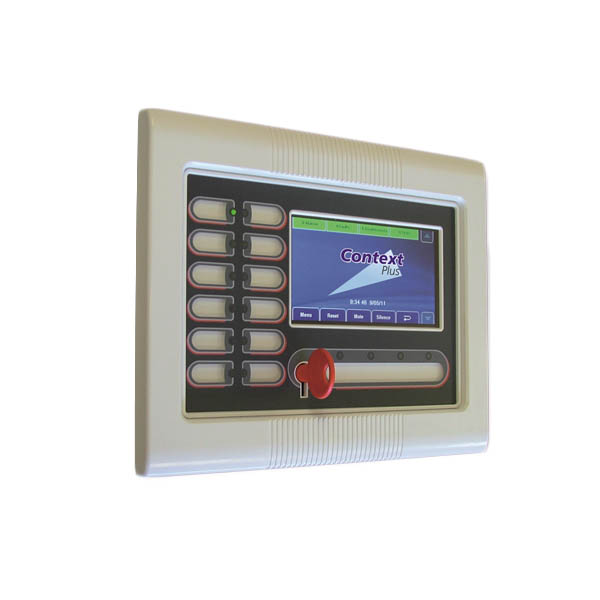

The ZFP HiNET Repeater panel Multipath Network (includes network interface PCB) Surface mount- Requires a Separate PSU is part of the Analogue Addressable Fire Detection Panels range from Context Plus, supplied and supported by SPS. The Context Plus ZREP1S is an intelligent addressable ZFP network device that can be used as a traditional but compact repeater panel with added functionality. Includes a Z41 Touchscreen Control Module and ZHN 'Hi-Net' multi-path fault-tolerant network PCB. Housed in a stylish surface mounting plastic enclosure measuring just 214mm x 178mm x 70mm. Can be used to an enhance a building's reception area and access points (locate your main ZFP panels out of sight and let our ZFP Compact Controllers add a touch of class to your surroundings). Full Access Level 2 functionality (silence, disable, reset, etc). Requires a separate EN54-4 boxed PSU such as our BF360-24 1A 24V boxed PSU. Up to 64 Compact Controllers can be connected to a ZFP network (each controller classed as 1 network node).
Specifications & features
- Power requirements: Requires a separate EN54-4 PSU such as our BF360-24 1.5A 24V boxed PSU.Indicators : Full-colour 480 x 272 pixel touchscreen;
- 16 LEDS (11 reserved for mandatory EN54 indicators).
- Controls : Interactive touchscreen with menu sensitive buttons;
- 1 x keyswitch allowing direct access to Access Level 2.
- Keyswitch requires S-KEY fire panel key.
- Product dimensions: (mm) 214 W x 178 H x 70 D mm.
- Surface mounting.
- Construction & finish: Plastic detachable lid and back box.
- IP Rating: IP41.
- Weight:1.27kg (unpacked).
- Operating conditions/temperature: -5ºC to +40ºC.
- relative humidity 95% non-condensing.
- Notes: Up to 64 ZFP Compact Controllers can be connected to a ZFP 'Hi-Net' Network.
- See Instructions for further details.
