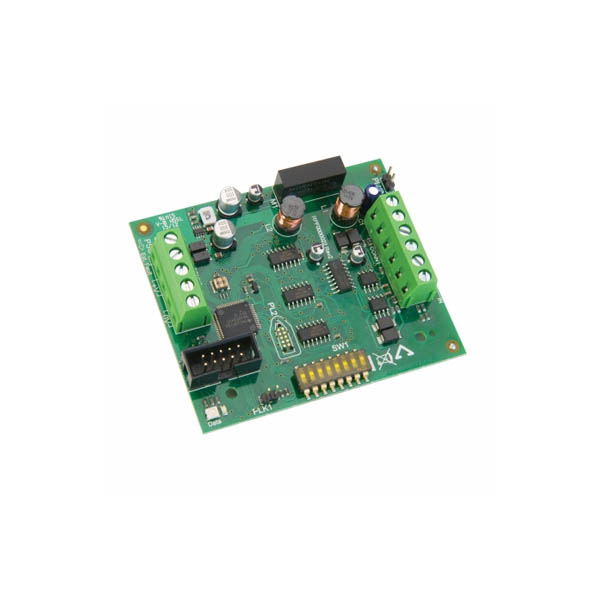

ZFP RS485 Multipath network interface PCB
• The Context Plus ZHN allows the interconnection of up to 64 Context Plus ZFP Main Panels (any mix) and up to 64 ZFP Compact Controllers over a two-w
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The ZFP RS485 Multipath network interface PCB is part of the Analogue Addressable Fire Detection Panels range from Context Plus, supplied and supported by SPS. • The Context Plus ZHN allows the interconnection of up to 64 Context Plus ZFP Main Panels (any mix) and up to 64 ZFP Compact Controllers over a two-wire RS485 ring-wired, multi-path, fault-tolerant 'Hi-Net' network. • One ZHN required per ZFP Main Panel (ZFP Compact Controllers model ZREP1S include a ZHN PCB as standard). • RS485 Protocol. • Max. cable length between nodes = 1KM • Max. cable length of entire network = 128KM • For retrofits, multiple ZHNs can be wired in a non-fault tolerant, single-path network configuration (Max. 8 nodes; Max length of entire network must not exceed 1KM).
Specifications & features
- Type: RS485.
- Indicators: Network Status LEDs.
- Connections: From node to node, connect A (IN) to A (OUT), B (IN) to B (OUT) and C (IN) to C (OUT).
- Terminals A and B are for data comms and terminal C is for earth screens.
- Network specification: Multi-path, fault-tolerant RS485.
- 126 network nodes (up to 64 ZFP mains & 64 Compact Controllers);
- cable length of network: 128km;
- cable length between nodes: 1km.
- For standard non-fault tolerant network specs see main instructions.
- Notes: Each node requires a unique ID number (1-126) which is set via Dip switch (SW1) on the ZHN PCB.
