Addressable loop powered Open Area Beacon Red Lens with Isolator IP65
The Intelligent Addressable Open-Area Visual Indicator Beacon of Context Plus has been developed for use in situations where there is a risk that soun
S.P.S — Product

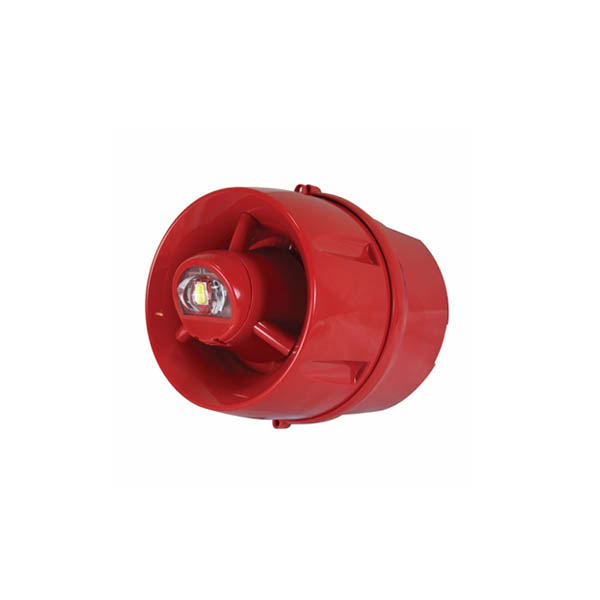

Addressable Combined loop powered Sounder/Beacon with deep base IP55
• The Context Plus Addressable Combined loop powered Sounder/Beacon with deep base CON433A/CX/DR/65 is the IP55 version of our popular Sounder/Beacon
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The Addressable Combined loop powered Sounder/Beacon with deep base IP55 is part of the Analogue Addressable Audio Visual & Voice Alarms range from Context Plus, supplied and supported by SPS. • The Context Plus Addressable Combined loop powered Sounder/Beacon with deep base CON433A/CX/DR/65 is the IP55 version of our popular Sounder/Beacon CON433A/CX/DR. • Provides 'W-2.4-8.2' light distribution when wall mounted (min 0.4 lux over a 2.4m x8.2m cuboid area) using the same lens and electonics as our EN54-23, 3 & 17 certified Hi-Output Sounder VAD. • Impressive 103dB(A) sound output @ 1m. • Onboard short-circuit loop isolator. • 550µA quiescent current. • 14mA alarm current @24V DC (VAD lit, sounder on max). • Group addressing facility allows multiple devices to be operated simultaneously. • 7 selectable volume levels and up to 15 selectable tone pairs. • IP55 rated.
Specifications & features
- The Context Plus Addressable Combined loop powered Sounder/Beacon with deep base CON433A/CX/DR/65 is the IP55 version of our popular Sounder/Beacon CON433A/CX/DR.
- Provides 'W-2.4-8.2' light distribution when wall mounted (min 0.4 lux over a 2.4m x8.2m cuboid area) using the same lens and electonics as our EN54-23, 3 & 17 certified Hi-Output Sounder VAD.
- Impressive 103dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 550µA quiescent current.
- 14mA alarm current @24V DC (VAD lit, sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 7 selectable volume levels and up to 15 selectable tone pairs.
