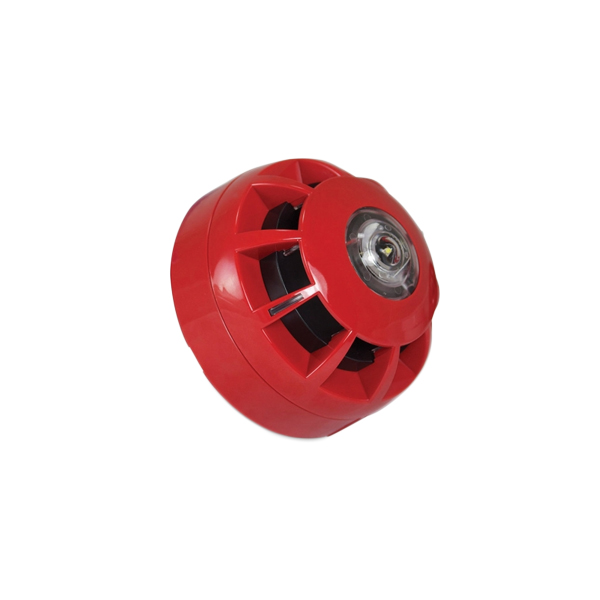

Addressable loop powered red Vantage Compact Beacon c/w shallow base- INTERTEK Approved

REF. SPS-0222 Official equipment

The Context Plus red Vantage loop powered Compact beacon c/w shallow base is third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek. P

Ask on WhatsApp
  • Genuine, fully-supported equipment
  • Technical guidance from our engineers
  • Add several products, request one quote
Overview

Product Details

The Addressable loop powered red Vantage Compact Beacon c/w shallow base- INTERTEK Approved is part of the Analogue Addressable Audio Visual & Voice Alarms range from Context Plus, supplied and supported by SPS. The Context Plus red Vantage loop powered Compact beacon c/w shallow base is third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek. Provides 'W-3-3.1' light distribution when wall mounted (min 0.4 lux over a 3 x 8m cylindrical area). Can also provide 'C-3-8' light distribution when ceiling mounted (min. 0.4 lux over a 2.4 x 3.5m cuboid area). Onboard short-circuit loop isolator. 550µA quiescent current. 10mA alarm current @24V DC. Group addressing facility allows multiple devices to be operated simultaneously. IP21C rated.

Specifications & features

  • The Context Plus red Vantage loop powered Compact beacon c/w shallow base is third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek.
  • Provides 'W-3-3.1' light distribution when wall mounted (min 0.4 lux over a 3 x 8m cylindrical area).
  • Can also provide 'C-3-8' light distribution when ceiling mounted (min.
  • 0.4 lux over a 2.4 x 3.5m cuboid area).
  • Onboard short-circuit loop isolator.
  • 550µA quiescent current.
  • 10mA alarm current @24V DC.
  • Group addressing facility allows multiple devices to be operated simultaneously.
  • IP21C rated.
