Overview
Product Details
The Network communication card (allows up to fourteen ECU-8 or ECU-8NT or ECU-4 or ECU-16 to be interlinked – one required per networked ECU-8 or ECU-8NT or ECU-4 or ECU-16). Use only when the addition of is part of the Fire Telephone & Disabled Refuge Systems range from Context Plus, supplied and supported by SPS. The ECU723 network card allows an ECU-224 desk controller to be connected to an ECU-4, ECU-8 or ECU-16 master controller. The ECU723 also acts as a network card if networking is required. The ECU723 transmits speech via a single wiring loop and digital data via two linear RS485 networks. Max. length of all networks is 1 km.
Specifications & features
- The ECU722 is a network card that is used for expanding the fire telephone or disabled refuge systems of Context Plus.
- It allows an ECU-224 desk controller to be connected to an ECU-4, ECU-8 or ECU-16 master controller.
- Allows an ECU-224 desk controller to be connected to an ECU-4, ECU-8 or ECU-16 SigTEL master controller to simplify call handling on larger SigTEL applications.
- Mounts inside an ECU-4, ECU-8 or ECU-16 (can also be used to network the ECU-4, ECU-8 or ECU-16 to another controller if required).
- Not compatible with ECU-8NT controllers.

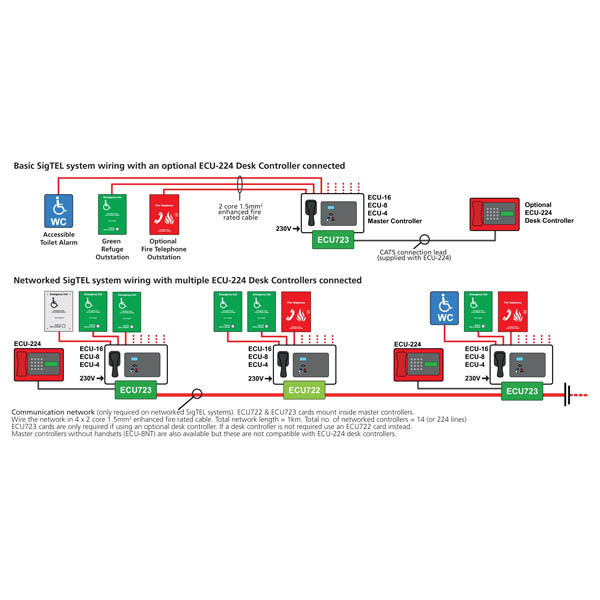

- See schematic/full instructions for further details Network connection: The ECU723 transmits speech via a single wiring loop and digital data via two linear RS485 networks.
- length of all networks is 1 km.
- Connections: Cat 5 patch lead (supplied) connects the ECU723 to a master controller.
- The ECU-224 desk controller also connects to the ECU723 via a Cat 5 lead.
- Product dimensions (mm): 92 W x 108 H x 20 D mm.
- Weight: 56g.
- Notes: We recommend two separate cable paths be run with each path containing a single speech and single data cable (which should not be mixed in the same cable).
- Download main Instruction manual for further details.
