Remote status unit, flush mounting, fully-functional c/w Status LCD, manual release & mode (auto/manual) switches. Max. 8 x EP201F or EP210S per EP203

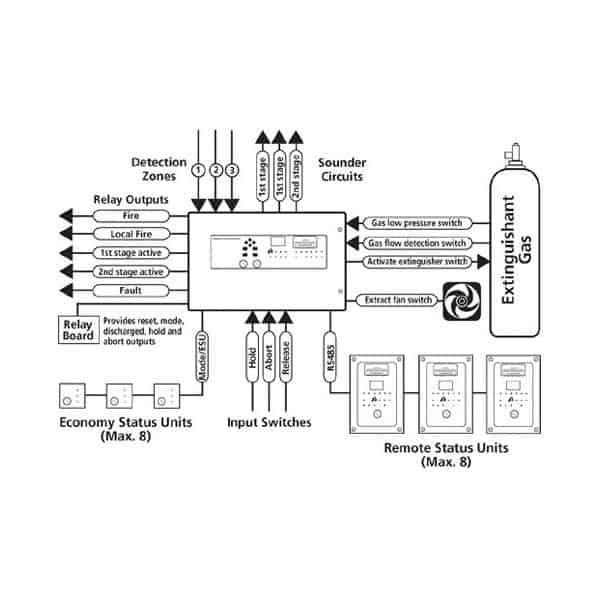

The Remote status unit, flush mounting, fully-functional c/w Status LCD, manual release & mode (auto/manual) switches. Max. 8 x EP201F or EP210S per EP203 is part of the Clean Agent Fire Suppression Systems range from Context Plus, supplied and supported by SPS. Designed to connect to the RS485 terminals on an EP203/CON Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64 pixel LCD status display. Also includes a pull-down manual release button, a mode (auto/manual) keyswitch and a wide range of system status indicators. Three monitored input connections (Hold, Abort and Mode). 8 remote status units per EP203/CON panel. Surface remote status units (EP210S) and weather proof enclosures (BF359/1) also available.

Specifications & features

• Power requirements: 21-28VDC (200mA electronic fuse).
• Quiescent current: 7mA.
• Auxiliary inputs: Three: (1) Hold;
• A 6k8 EOL resistor must be fitted across the terminals of the last device on each monitored input circuit.
• Unused circuits must have the 6k8 resistor fitted at the terminals.
• Indicators: Gen.
• Fire Zones (x3);
• disablement;
• 1st Stage Output;
• 2nd Stage Output;
• Release Imminent (x2);
• Extinguishant Released;
• Controls: Extinguishant release (housed in yellow casing);
• Operation keyswitch (Manual only or Manual & Auto).
• Product dimensions(mm): 175 W x 250 H x 70 D mm.
• Hole required for flush mounting 156 W x 232 H x 51 D mm.
• Construction & finish: Metal.
• IP Rating: IP30.
• Weight: 1.338kg..
• Operating conditions/temperature: -5ºC to +40ºC.
• Max relative humidity: 95%.
• Network specification: RS485;
• 8 remote status units (any mix) per EP203;
• Four wire connection (2 power, 2 data);
• Daisy-chain wiring.
