Overview
Product Details

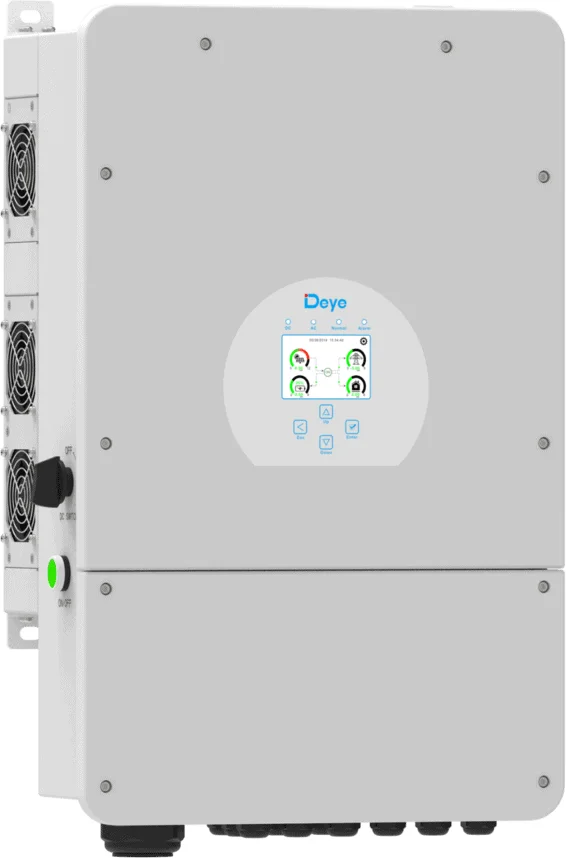

The SUN-10K-SG02LP1-EU-AM3 delivers 10kW from a single phase (supplied by SPS), which is as much backed-up power as most Lebanese buildings can draw without moving to three-phase. It accepts 20kW of PV, pushes 220A into a 48V lithium bank, and reaches 97.6% peak efficiency behind an IP65 enclosure.
Specifications
- Rated Output Power: 10000 W
- Max Apparent Power: 11000 VA
- Phase: Single phase, 220/230 Vac
- Battery Voltage Range: 40-60 V
- Max Charging / Discharging Current: 220 A
- Max PV Access Power: 20000 W
- Max PV Input Power: 16000 W
- MPPT Voltage Range: 150-425 V
- Max Efficiency: 97.6%
- Protection Rating: IP65
- Dimensions (W x H x D): 420 x 670 x 233 mm
- Weight: 35.6 kg
