SUN-10K-SG02LP1-EU-AM3
Deye SUN-10K-SG02LP1-EU-AM3 - 10kW single-phase 48V hybrid inverter with 220A battery charging and IP65 enclosure.

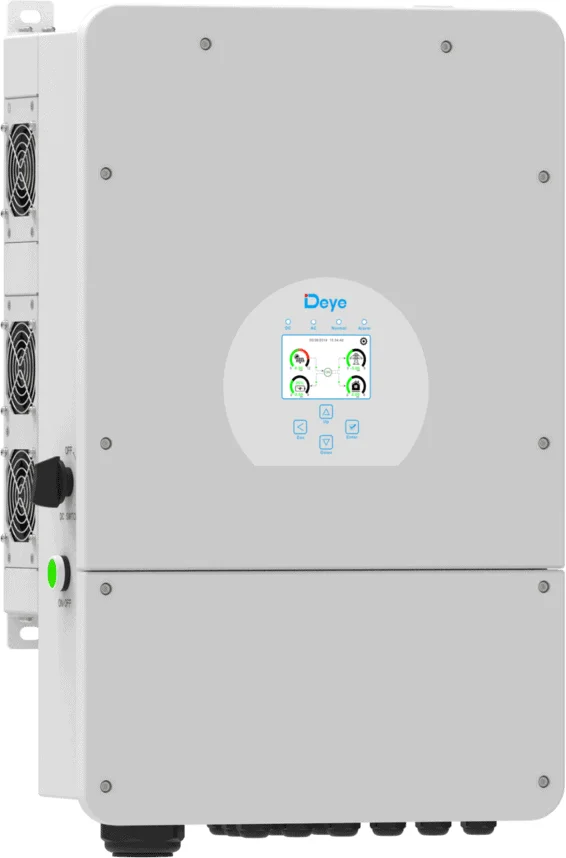

SUN-12K-SG02LP1-EU-AM3
Deye SUN-12K-SG02LP1-EU-AM3 - 12kW single-phase 48V hybrid inverter with 250A battery charging and 24kW PV input.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The SUN-12K-SG02LP1-EU-AM3 is the largest single-phase hybrid Deye builds on the 48V platform (supplied by SPS). It takes 24kW of PV, moves 250A in and out of the battery bank, and still runs off a single phase, which keeps it practical for Lebanese buildings without a three-phase supply.
Specifications
- Rated Output Power: 12000 W
- Max Apparent Power: 13200 VA
- Phase: Single phase, 220/230 Vac
- Battery Voltage Range: 40-60 V
- Max Charging / Discharging Current: 250 A
- Max PV Access Power: 24000 W
- Max PV Input Power: 19200 W
- MPPT Voltage Range: 150-425 V
- Max Efficiency: 97.6%
- Protection Rating: IP65
- Dimensions (W x H x D): 420 x 670 x 233 mm
- Weight: 35.6 kg
