Overview
Product Details

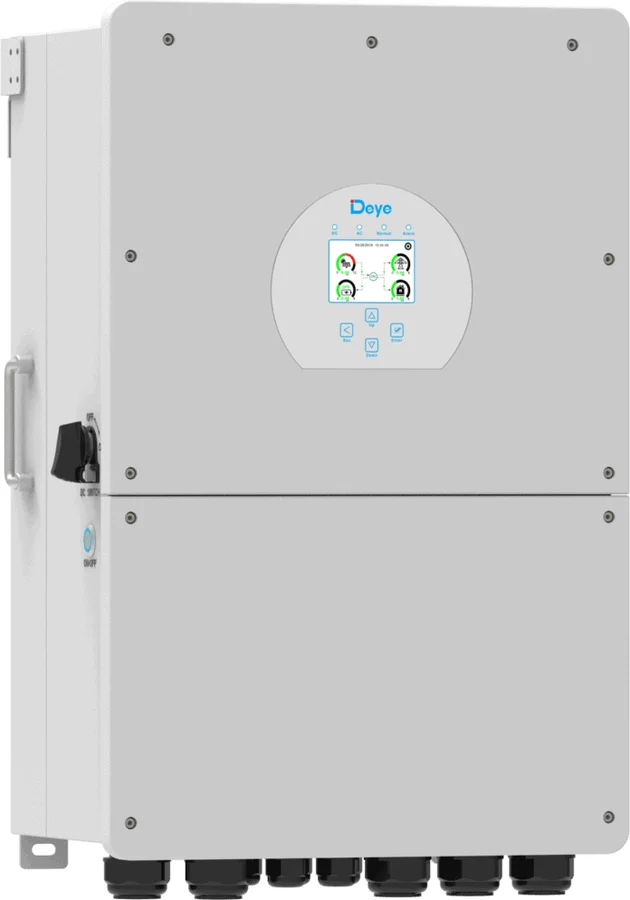

The SUN-16K-SG01LP1-EU is Deye's heaviest single-phase hybrid (supplied by SPS), built for large villas and small commercial loads that still sit on one phase. Three MPPT trackers take up to 32kW of PV, two battery inputs move 290A, and continuous grid pass-through reaches 100A.
Specifications
- Rated Output Power: 16000 W
- Max Apparent Power: 17600 VA
- Phase: Single phase, 220/230 Vac
- Battery Voltage Range: 40-60 V
- Max Charging / Discharging Current: 290 A
- Number of Battery Inputs: 2
- Max PV Access Power: 32000 W
- Max PV Input Power: 25600 W
- MPPT Voltage Range: 150-425 V (3 MPPT)
- Max Continuous AC Pass-through: 100 A
- Protection Rating: IP65
