IVBM 8048P1G1
Felicity Solar IVBM 8048P1G1 — 8kW / 48V DC off-grid low-frequency solar inverter/charger with dual-string MPPT, built-in Wi-Fi and an IP65 enclosure.
SUN-20K-SG01HP3-EU-AM2
Deye SUN-20K-SG01HP3-EU-AM2 - 20kW three-phase high-voltage hybrid inverter for 160-700V battery banks.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details

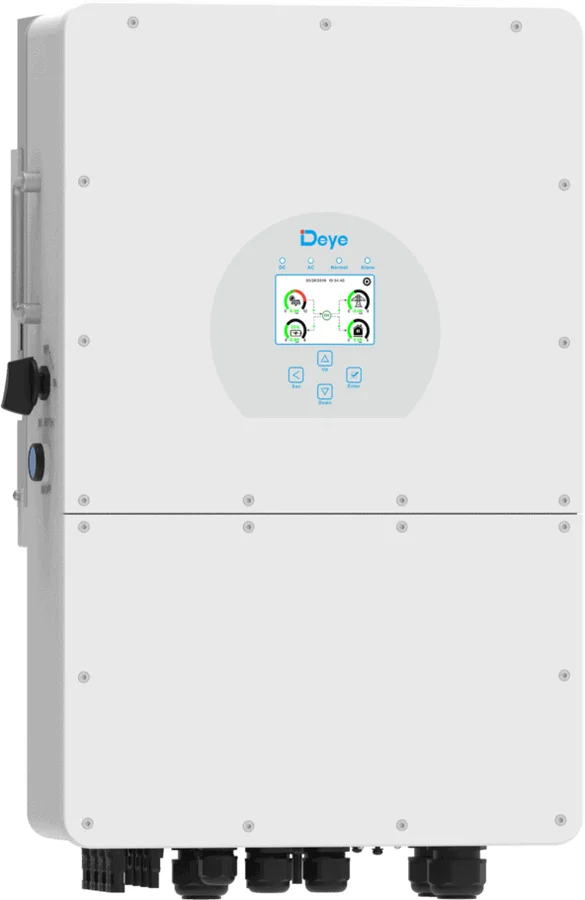

The SUN-20K-SG01HP3-EU-AM2 is the three-phase high-voltage hybrid that Lebanese integrators pair with stacked HV batteries on commercial sites (supplied by SPS). Working at 160-700V DC instead of 48V cuts current and cable losses sharply. It accepts 40kW of PV and delivers a fully unbalanced three-phase output.
Specifications
- Rated Output Power: 20000 W
- Max Apparent Power: 22000 VA
- Phase: Three phase, 220/380 V - 230/400 V
- Battery Type: Lithium-ion (high voltage)
- Battery Voltage Range: 160-700 V
- Max Charging / Discharging Current: 50 A
- Max PV Access Power: 40000 W
- Max PV Input Power: 32000 W
- Max PV Input Voltage: 1000 V
- MPPT Voltage Range: 150-850 V
- Parallel Capability: Up to 10 units
