IVCM 3024 PRO
Felicity Solar IVCM 3024 PRO — 3kW / 24V DC multifunction solar inverter/charger with built-in MPPT.

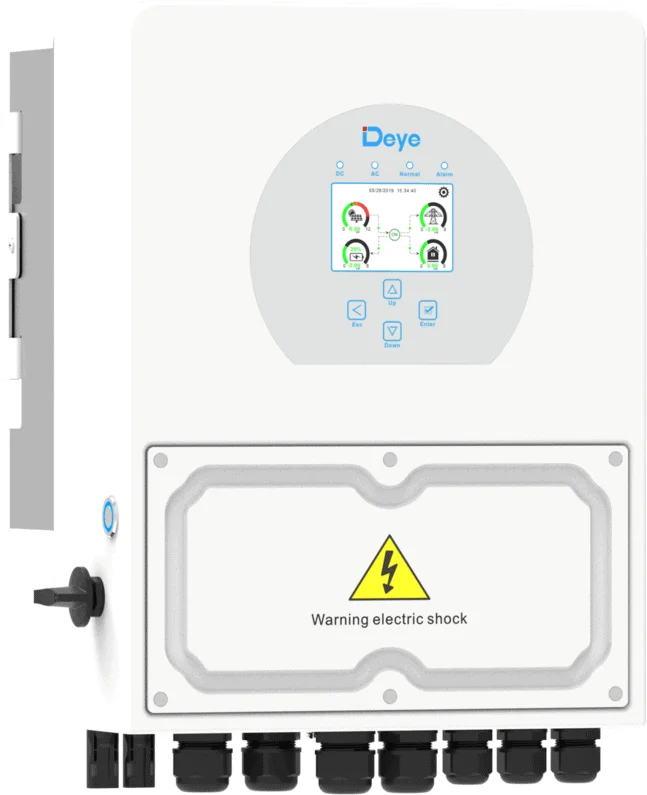

SUN-5K-SG04LP1-EU
Deye SUN-5K-SG04LP1-EU - 5kW single-phase 48V hybrid inverter with colour touch LCD, IP65 and 120A battery charging.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The SUN-5K-SG04LP1-EU is the current-generation 5kW single-phase hybrid inverter from Deye (supplied by SPS). It adds a colour touch LCD and an IP65 enclosure to the familiar 48V platform, accepts up to 10kW of PV across two MPPT trackers, and parallels up to 16 units for larger installations. Battery charge and discharge run to 120A with six programmable time windows.
Specifications
- Rated Output Power: 5000 W
- Max Apparent Power: 5500 VA
- Phase: Single phase, 220/230 Vac
- Battery Voltage Range: 40-60 V
- Max Charging / Discharging Current: 120 A
- Max PV Access Power: 10000 W
- Max PV Input Power: 8000 W
- Max PV Input Voltage: 500 V
- MPPT Voltage Range: 150-425 V (2 MPPT)
- Parallel Capability: Up to 16 units
- Protection Rating: IP65
