Plastic Cabinet for Portable Fire Extinguishers
Wall-mounted moulded plastic extinguisher cabinet with hinged red door, viewing window and internal retaining strap.

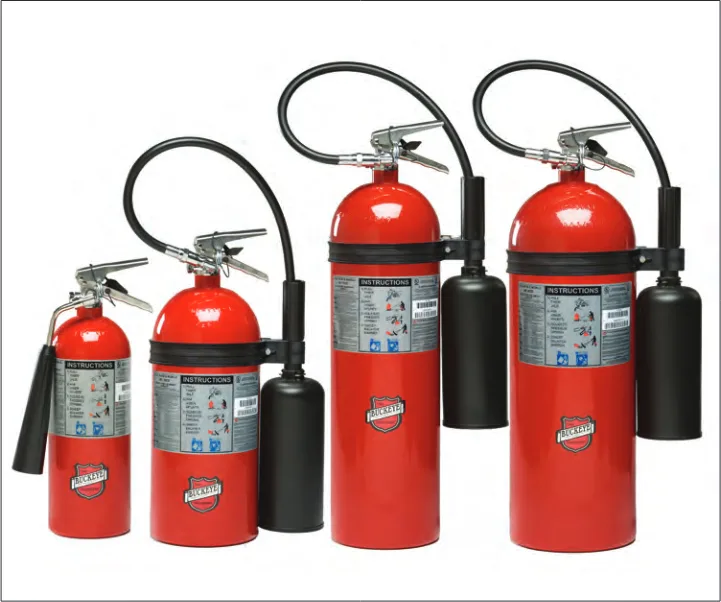

UL Listed Portable BC CO₂ Fire Extinguishers
UL/ULC listed portable CO₂ extinguishers, 5 lb to 20 lb; non-conductive clean agent for Class B and C fires.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
UL and ULC listed portable carbon dioxide extinguisher range from 5 lb to 20 lb. CO₂ is a non-conductive clean agent, making it the recommended choice for sensitive electronic equipment.
Specifications & features
- Non-conductive clean agent, suitable for Class B and Class C fires
- Recommended for use on sensitive electronic equipment
- Range covers 5 lb, 10 lb, 15 lb and 20 lb agent capacities
- Leaves no residue on protected equipment
- Suited to offices, classrooms, parking garages and service centres
Technical specification
| 451 | 456 | 461 | 466 | |
|---|---|---|---|---|
| Description | 5 lb Carbon Dioxide | 10 lb Carbon Dioxide | 15 lb Carbon Dioxide | 20 lb Carbon Dioxide |
| Part # | 45100 | 45600 | 46100 | 46600 |
| Agent Capacity | 5 lb (2.27 kg) | 10 lb (4.54 kg) | 15 lb (6.8 kg) | 20 lb (9.07 kg) |
| UL/ULC Rating | 5-B:C | 10-B:C | 10-B:C | 10-B:C |
| Discharge Time | 9 sec | 9 sec | 15 sec | 20 sec |
| Discharge Range ft (m) | 4-8 (1.2-2.4) | 4-8 (1.2-2.4) | 4-8 (1.2-2.4) | 4-8 (1.2-2.4) |
| USCG Approval | Type B:C Size I | Type B:C Size I | Type B:C Size II | Type B:C Size II |
| Ship Weight | 13.75 lb (6.3 kg) | 27.75 lb (12.6 kg) | 37.75 lb (17.1 kg) | 49 lb (22.2 kg) |
| Unit Height | 17.375 in (44.1 cm) | 19.75 in (50.2 cm) | 26.375 in (67 cm) | 26.875 in (68.2 cm) |
| Unit Diameter | 5.25 in (13.3 cm) | 6.89 in (17.5 cm) | 6.89 in (17.5 cm) | 8 in (20.3 cm) |
| Temperature Range | -22° to 120°F (-30° to 49°C) across the range | |||
Approvals & certifications
UL Listed · ULC Listed · DOT Compliant · USCG Approved
Model: 451 / 456 / 461 / 466
