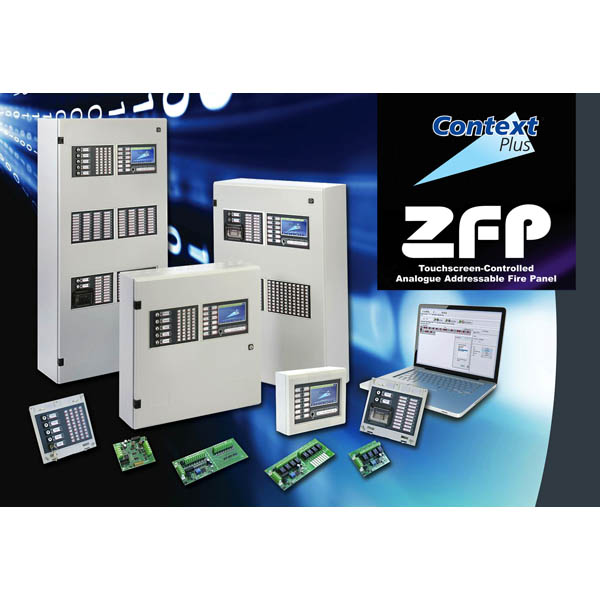

ZFP 4 loop Panel with 40 zone LEDS (Z49), PSU rated at 5 Amps, with Built-in Printer
The Context Plus ZFP panel model Z045040PS/X/CON is a feature-rich touchscreen-controlled intelligent addressable fire panel with 4 addressable loops,
S.P.S — Product
XFP Networkable single loop 32 zone panel, code/keyswitch entry, c/w 3A psu, metal enclosure- LPCB APPROVED
Context Plus’s XFP single loop 32 zone addressable fire alarm panel offers high performance at a very competitive price. LPCB certified to EN54 parts
- Genuine, fully-supported equipment
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The XFP Networkable single loop 32 zone panel, code/keyswitch entry, c/w 3A psu, metal enclosure- LPCB APPROVED is part of the Analogue Addressable Fire Detection Panels range from Context Plus, supplied and supported by SPS. Context Plus’s XFP single loop 32 zone addressable fire alarm panel offers high performance at a very competitive price. LPCB certified to EN54 parts 2 & 4, it is supplied in durable metal enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Context Plus addressable detectors and devices. Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe's best-selling addressable fire panels.
Specifications & features
- Context Plus’s XFP single loop 32 zone addressable fire alarm panel offers high performance at a very competitive price.
- LPCB certified to EN54 parts 2 & 4, it is supplied in durable metal enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Context Plus addressable detectors and devices.
- Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe's best-selling addressable fire panels.
- Packed full of engineering features – some of which are not available on more expensive alternatives.
- Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
- Compatibility with Context Plus addressable detectors and devices.
- Two independently programmable conventional sounder circuits.
- Two programmable inputs.
- A fault output relay and three programmable relay outputs with voltage free changeover contacts.
- A selection of zone dependency/coincidence functions.
- A day/night (building occupied/unoccupied) function.
- An investigation delay period function.
- Phased evacuation facility.
- An alarm counter that records how many times the panel has been in alarm state.
- Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
- An integral EN54-4/A2 switch mode power supply.
- Adjustable contamination levels.
- Earth fault monitoring.
- Combined keypad / keyswitch entry to Access Levels 2 and 3.
- 999 event monitoring.
- An intuitive Windows based upload-download PC program.
- Optional flush-mounting bezel and glazed stainless steel enclosure also available.
- Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 non-redundant network.
- Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.
