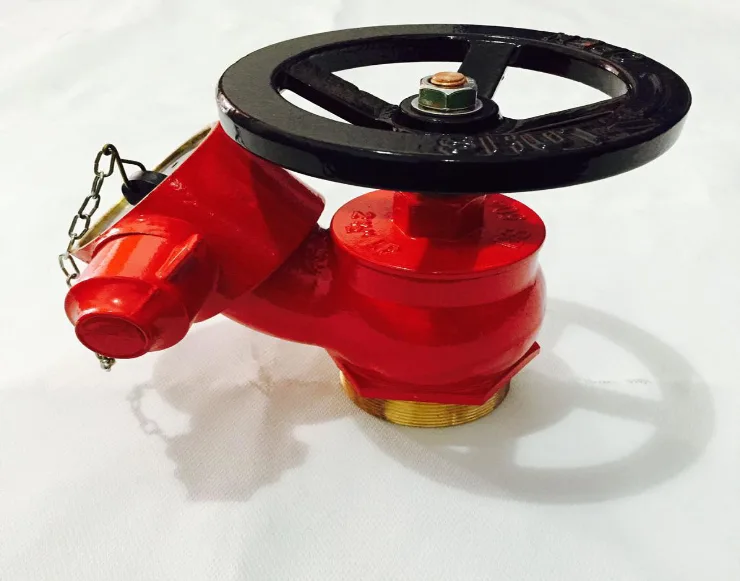

Landing Valves
DN65 brass oblique landing valve to BS 5041 Part 1; 2.5" BSP inlet, 2.5" BS 336 outlet, 16 bar working pressure.

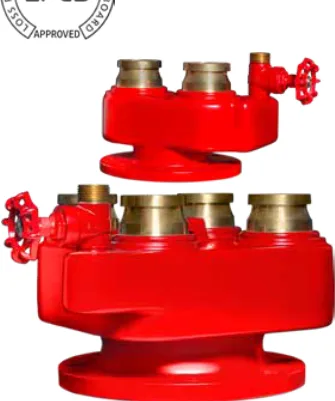

Siamese / Breeching Connection
Breeching inlet / fire department connection to BS 5041 Part 3:1975, 4" and 6", two-way or four-way; LPCB approved version available.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
Breeching inlet — also called a fire department connection (FDC) — that lets the fire brigade feed the sprinkler or standpipe system at sufficient pressure without pressurising the underground supply. Required by NFPA 13 and 14 as the auxiliary water supply for a water-based protection system. Available LPCB approved or standard.
Specifications & features
- Manufactured to comply with BS 5041 Part 3:1975
- Compact design with excellent flow characteristics
- Maintenance free, vertical or horizontal mountable
- Available in 4" and 6" sizes
- Two-way or four-way options
- Outlet flanged as BS 10 Table E, inlet BS 336 instantaneous male
- Available LPCB approved or standard
- Serves as the auxiliary water supply required by NFPA 13 and 14
Technical specification
| Standard | BS 5041 Part 3:1975 |
|---|---|
| Sizes | 4" and 6" |
| Configuration | Two way or four way |
| Outlet | Flanged as BS 10 Table E |
| Inlet | BS 336 instantaneous male |
| Mounting | Vertical or horizontal |
| Approval | LPCB approved version available |
Approvals & certifications
LPCB Approved · BS 5041 Part 3:1975 · NFPA 13 · NFPA 14
Model: Breeching Inlet (LPCB Approved / Standard)
